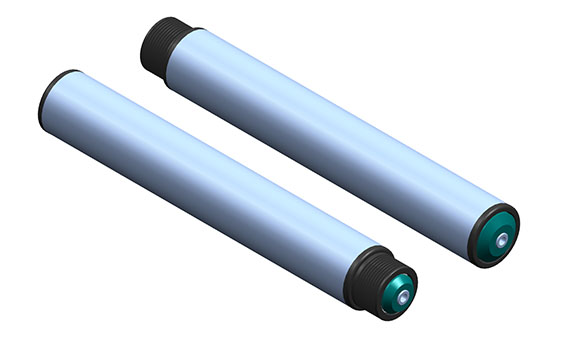

This series are suitable for light, middle duty conveying.
Advantages:
High speed,operation smoothly and steady,The noisy of polymer bearing components is greatly lowed down,that composed of precision ball bearing, polymer bearing housing and end cap for nice appearance.Besides,Polymer cover has the function of dust proof and water splash proof.
Disadvantages:
Cause the material is polymer,it can' t be used in the high temperature environment.
| Material of tube | Tube diameter and wall thickness |
| Galvanized steel | Φ 50*1.5 |
| Stainless steel | Φ 50*1.5 |

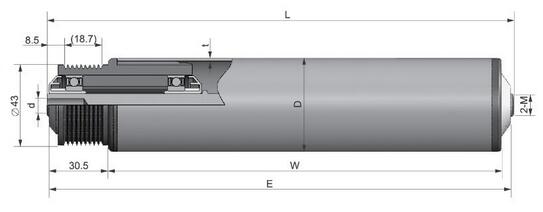

| Roller diameter(D) | Diameter of axle(d) | |||||
| Φ 50 | Φ 12/15 | E=W+35 | L=W+36 | |||
| Φ12(M8*15) Φ15(M10*20) | ||||||
