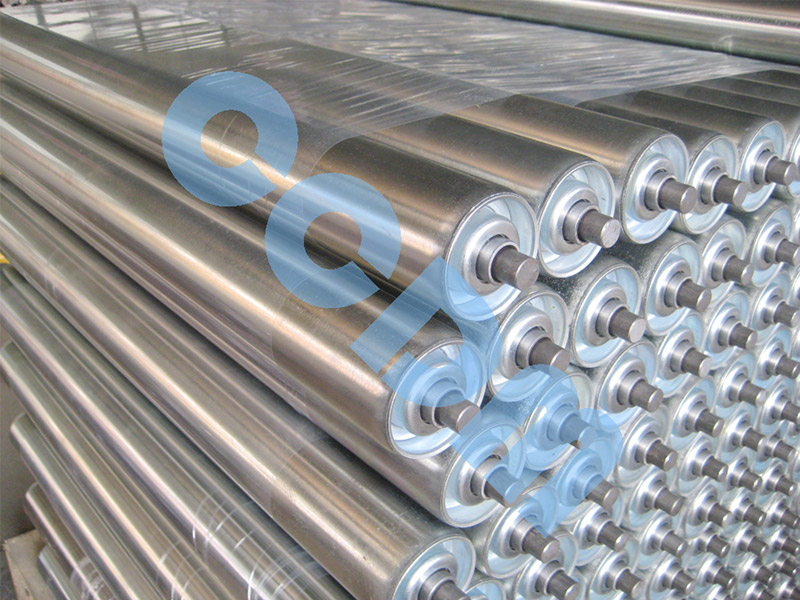

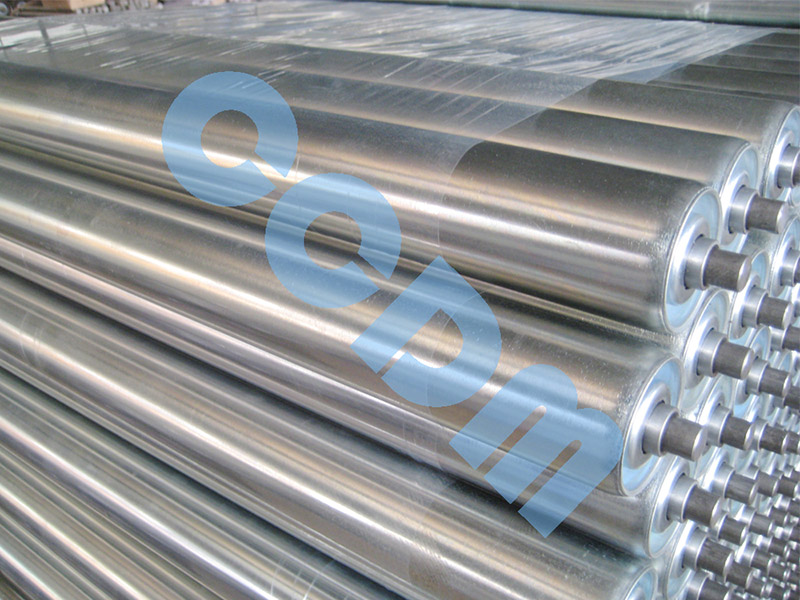

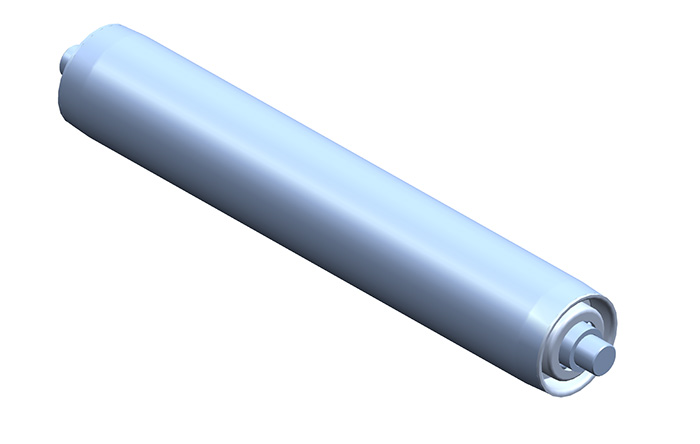

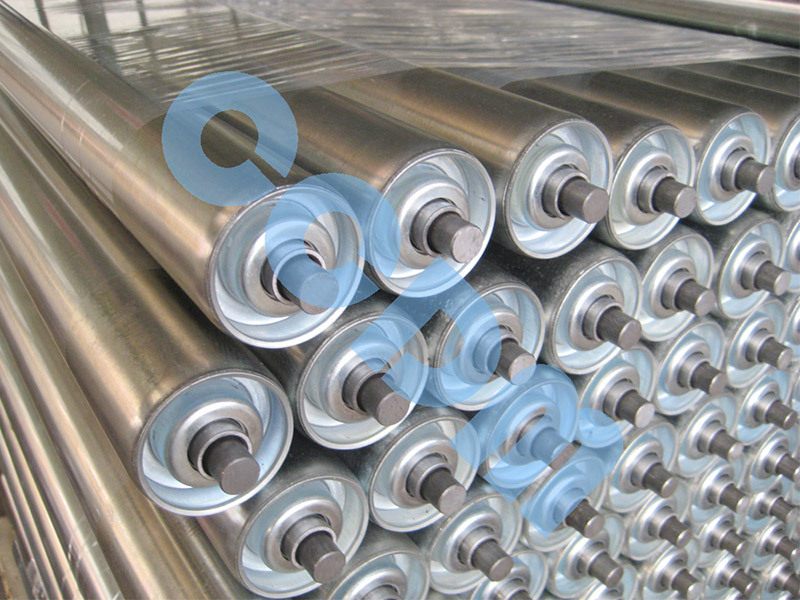

A103 Style Gravity Conveyor Roller/Plain End
A103 Style Gravity Conveyor Roller/Plain End
A103 Style Gravity Conveyor Roller/Plain End
A103 Style Gravity Conveyor Roller/Plain End
A103 Style Gravity Conveyor Roller/Plain End

This series is suitable for medium,heavy duty conveying

Introduction

Features & Benefits

Advantages:

there are many choices for this kind of roller(anti-static roller),can operate well in high or low temperature.the precision components are composed of precision ball bearing and steel bearing housing,which has larger capacity than polymer


Application

Specifications



Material of tubeTube diameter and wall thickness
Galvanized steelΦ 38*1.5
Φ 50*1.5
Φ 50*2.0
Φ 60*2.0
Φ 60*3.0
Φ 76*3.0
Φ 76*3.75
Φ 80*3.0
Φ 89*3.0
Φ 89*3.75
Stainless steelΦ 38*1.2
Φ 50*1.5
Φ 60*2.0
Φ 76*3.0

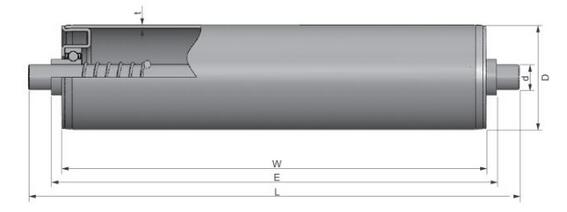

Roller diameter(D)Diameter of axle(d)

Φ 38Φ 12E=W+10L=W+32
Φ 50Φ 12/15E=W+10L=W+32
Φ 60Φ 12/15E=W+10L=W+32
Φ 76Φ 15E=W+10L=W+32
Φ 76

Φ 20

E=W+10L=W+40
Φ 80Φ 20E=W+10L=W+40
Φ 89Φ 20E=W+10L=W+40
