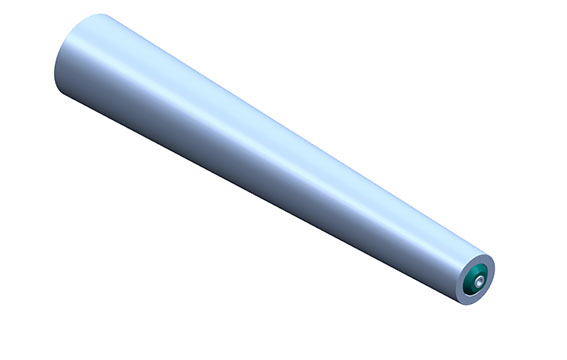

Advantages: Roller(standard taper3.6 degrees, can according to customer demand for customized) composed of at the two ends of the bearing seat and the cylinder body welding and at both ends of a plastic endcaps prevent entry of dust and splash water.
Advantages:
Roller(standard taper3.6 degrees, can according to customer demand for customized) composed of at the two ends of the bearing seat and the cylinder body welding and at both ends of a plastic endcaps prevent entry of dust and splash water.
| Material of tube | Tube width | Big end D2 |
| Galvanized steel | 300 | 68.9 |
| 400 | 75.1 | |
| 500 | 81.4 | |
| 600 | 87.7 | |
| 700 | 94 | |
| 800 | 100.3 | |
| 900 | 106.6 | |
| 1000 | 112.9 | |
| Stainless steel | 300 | 68.9 |
| 400 | 75.1 | |
| 500 | 81.4 | |
| 600 | 87.7 | |
| 700 | 94 | |
| 800 | 100.3 | |
| 900 | 106.6 | |
| 1000 | 112.9 |

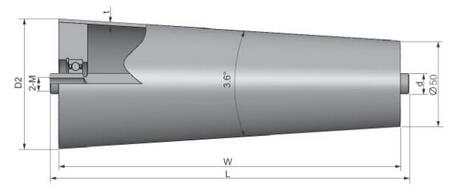

| Roller diameter(D) | Diameter of axle(d) | |
| Φ 50 | Φ 12/15 | L=W+11 |
| Φ12(M8*15) Φ15(M10*20) | ||
